Comparison of Burner Systems

Comparison of High Pressure Propane System to Low Pressure (Propane or Natural Gas) System
Item	High Pressure Propane	Low Pressure Nat Gas or Propane
Electricity Required?	No	Yes
Fuel	Propane	Natural Gas or Propane
Efficiency Per Btu	About Equal	About Equal
Fuel Mix through a given size Burner Head	100% with venturi utilizing 100% primary air(i.e., no secondary air)	150-180% with a good powerful blower. In other words, this system can push more combustibles through any given size head. In this regard it is often thought be the more efficient of the two systems. But keep in mind the extra fuel it pushes is not free. That is, you will pay for what you get.
Safety System	High Pressure Baso System	Purple Peeper (Standard Low Pressure Gas Safety System)
Is Safety system up to code	In some locations this does not meet code.	Yes
Cost of Safety System	$411.00	Up to Code for Purple Peeper will cost$1250.00-$2500.00 per Burner
Burner System	Venturi w Giberson Head	Forced Air w Giberson Head and/or other retention nozzle
Cost of Burner System	$360.00 (from Joppa Glassworks, Inc.)	$575.00 for a simple Dayton Blower & home made mixer with Giberson Head Up to $2000 for a slick factory made power mixer with a Giberson Head
Diagrams	Plans for High Pressure Propane System (0-25 psi)	Plans for Low Pressure (Natural Gas or Propane) System

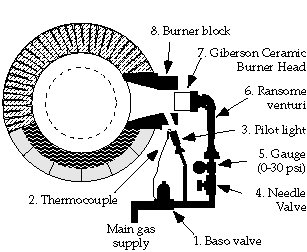

Plans for High Pressure Propane System (0-25 psi) This Complete High Pressure Baso Safety System (0-25 psi) with Giberson Head and Ransome Venturi is now available from Joppa Glassworks, Inc. Or if you want to build your own we can sell you the components as listed below . . . .

Item	Prod. Number	Vendor	Cost:
1	Baso Valve (H19RA-2)	Joppa Glassworks, Inc.	$175.00
2	Thermocouple (JC-TC48)	Joppa Glassworks, Inc.	$28.00

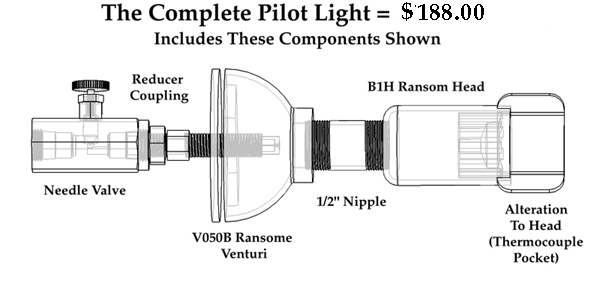

3	Complete Pilot Light Assembly	Joppa Glassworks, Inc.	$188.00
4	Needle Valve	Joppa Glassworks, Inc.	$23.00
5	Gauge (0-30 PSI)	Joppa Glassworks, Inc.	$16.00
6	Ransome Venturi 1-1/2"	Joppa Glassworks, Inc.	$140.00
7	Giberson Head (CBH# various)	Joppa Glassworks, Inc.	$195.00
8	Burner block	homemade	$20.00
9	Total Approximate Cost		$785.00

Plans for Low Pressure
(Natural Gas or Propane) System

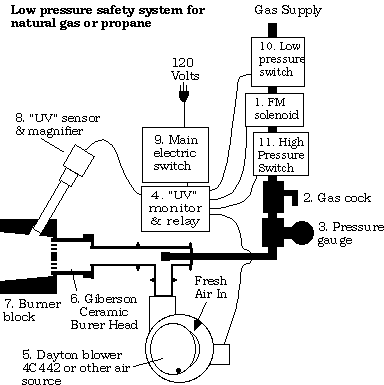

The schematic below shows the low pressure "UV" safety system approximating what is current practice. It is not inexpensive but is designed to protect from the many dangers. I have contacted Stephen Abell from Abell Combustion, Inc. He is a competent engineer willing to guide you through this maze of safety issues (as of A.D. 2001). He sells a complete line of safety related gauges, mixers, solenoids, and controls.

Abell Combustion, Inc., Meeder Equipment, and Joppa Glassworks, Inc. have no relations other than professional courtesy. Joppa Glassworks, Inc. and/or Dudley Giberson do not imply that these are the only folks out there who can help you with your gas safety issues. Look around locally and use these pages as a general guide to get help.

Item	& Product description	Vendor	Approximate Cost as of 6/1/2012 (add at least 15 percent for November 2018)
1	FM solenoid (ASCO)	Abell Combustion, Inc.	$400.00
2	Gas cock	Abell Combustion, Inc.	$15.00
3	Pressure gauge (for low pressure)	Abell Combustion, Inc.	$75.00
4	UV monitor & relay	Abell Combustion, Inc.	$600.00
5	Dayton blower - 1TDP5	WW Grainger- or Joppa Glassworks, Inc. Plus Adaptations	$249.50
5	Alfred Mixer	Make Yourself or Joppa Glassworks, Inc.	$109.00
6	Giberson Ceramic Burner (various)	Joppa Glassworks, Inc.	$195.00
7	Burner block	homemade	$20.00
8	UV sensor & magnifier	Abell Combustion, Inc.	$120.00
9	Main electric switch	local store	$15.00
10	Low limit pressure switch	Abell Combustion, Inc.	$120.00
11	High limit pressure switch	Abell Combustion, Inc.	$130.00
12	Approximate Total Cost		$2048.00
