	These pages are to give three view, dimensional drawings for the basic components of the Mini-Square Burner and Burner Block Series

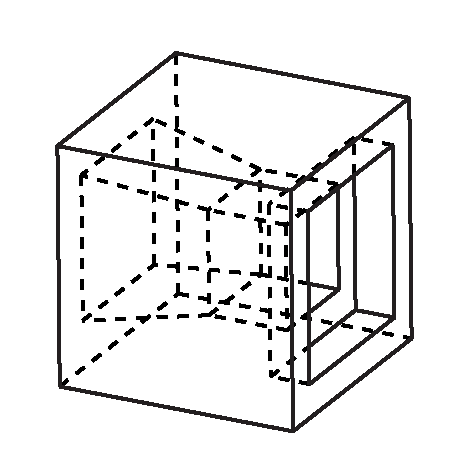

	2" Mini-Square Burner Block This image to the left is a see-through view of the Mini-Square Burner Block designed to fit the 2 Inch Mini-Square Giberson Ceramic Burner Head. In actuality the recess measures 2.15" square which provides a little slack so the burner head will not bind in the burner port. Please click on the image to download the PDF for this item showing complete dimensions.

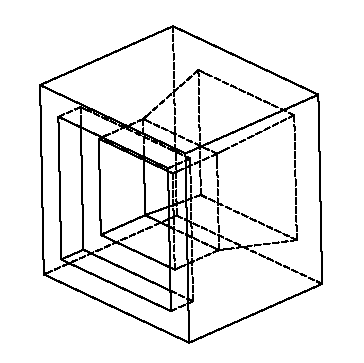

	2.5" Mini-Square Burner Block This image to the left is a see-through view of the Mini-Square Burner Block designed to fit the 2.5 Inch Mini-Square Giberson Ceramic Burner Head. In actuality the recessed lip measures 2.64" squared which provides a little slack so the burner head will not bind in the burner port. Please click on the image to download the PDF for this item showing complete dimensions.
	2" Mini-Square Burner Head This image to the left is of our 2" Mini-Square Burner Head. This unit is designed to fit into the 2 Inch Mini-Square Giberson Burner Port which has a recessed lip measuring 2.15". There is a slight amount of slack to prevent binding, but the flame shoots right through the center of the burner block. This arrangement keeps the burner head cool and provides for optimum burn. Please click on the image to download the PDF for this item showing complete dimensions.
	2.5" Mini-Square Burner Head This image to the left is of our 2.5" Mini-Square Burner Head. This unit is designed to fit into the 2.5 Inch Mini-Square Giberson Burner Port which has a recessed lip measuring 2.64". This provides a slight amount of slack to prevent binding, and by using this arrangement the flame shoots right through the center of the burner block. This keeps the burner head cool and provides for optimum burn. Please click on the image to download the PDF for this item showing complete dimensions.
